Products > Four Wire Cable Tester

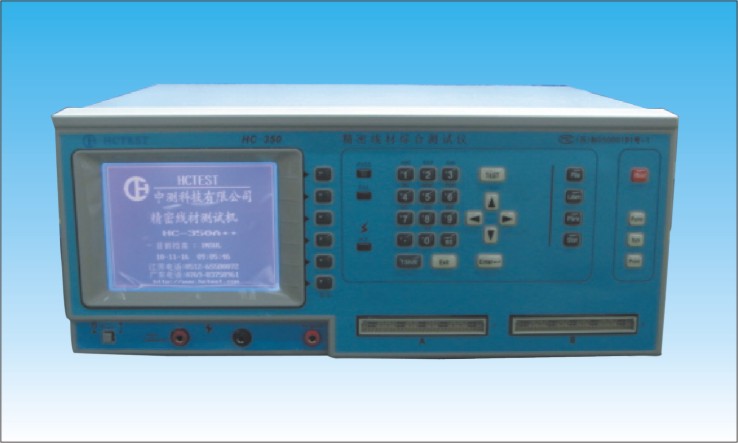

Precision Cable Tester

Product Features

  • 4-Wire Measurement

  • 320x240 LCD Display

  • Up to 1500VDC / 1000VAC Test Voltage

  • Capacitance measurement to 1000uF

  • New cpu update , Test speed faster





Test Functions

Test item

Symbol

         Range

Open / Short

os

200Ω ~ 50KΩ

Conductance

Cond.

10mΩ ~ 50Ω

Resistance

R

0.1Ω ~ 1MΩ

Capacitance

C

10pF ~ 1000uF

Capacitance  Polarity polaritypolarity

±

                 ­

Zener

D

0 ~ 10V

Dc Insulation

Is.

1MΩ ~ 1000MΩ

Ac Hipot

IL

0.01mA ~ 5mA

Arcing



0 ~ 8 ( 0 , off )

Intermittent Conductance

Int.cond.

10mΩ ~ 50Ω

Intermittent Open/Short

Int.os

200Ω-50KΩ

High Speed Intermittent

Int.open

0.4ms



Test information



Output Rating  5 Vdc , 20mA max

DC Hipot / insulation  5-1500V

AC Hipot / 50-1000V    (50V Resolution)

Test mode

NORMAL / S.SIDE / S.STEP

Rated current & voltage analysis

Communication interface

Handler / Rs232 / Print / USB

Measurement& scanning Mode

Series / Parallel

Auto/Short Switchable

Decision mode

Pass /fail (led)  .  Speaker

Lock Mode

Standard lock  /  Password lock

Starting mode

Auto / Manual / Continuous / External

Memory

1024KB



Comprehensive information



Power Input 220V ±10%  60Hz  (Option 110V  50Hz)

Power consumption: 100W

Temp. :  -10 ~ 35   Humidity : RH 75%

Size : 425*190*350 (64p or 128P) / 425*240*350 (256P)

Weight : 13KG(64p) / 14KG(128p) / 18KG(256p)

Display 320*240 led

Purchase information

HC-6350H                                                     Precision Cable Tester

/ L                                 Analysis of component parameters

/ U                                 USB interface

/64 /128 /256 / 512                                    Test points selection



Accessories

FX-1032   output 32Pin  (2*16*2.54)            FX-1025  output 25pin DSB  (Female)

FX-1064   output 64pin   (2*32*2.54)             FX-1026   output 25pin DSB (Male)

FX-1080    Lock Alarm                             FX-1090  Pneumatic tapper
