| Product Features
■ The ARM Cortex-M3 kernel, improve the speed and accuracy of the system
■ Test LED lamp color HSL value, XY value, accurate identification of color
difference
■ Forward voltage test of LED and reverse current
■ Support manual settings and learning mode
■ Support 8 groups of data, and the 2 channels
■ Automatic white balance calibration, test fixture can be adjusted flexibly
■ Test
mode : Auto / Manual
Test Item
H, S, L, X, Y, V,I(R,G,B. options)
| 測量範圍
|
| H
|
0.000 — 1.000
|
| S
|
0.000 — 1.000
|
| L
|
0.000 — 1.000
|
| X
|
0.000 — 1.000
|
| Y
|
0.000 — 1.000
|
| V
|
0.000 — 8.000(V)
|
| I
|
0.000 — 50.000(mA)
|
Specifications
| Temp. Humidity
|
0°C－60°C, £90%RH
|
| Power
|
Volt .
|
AC 220V ± 10%
|
| Freq.
|
50Hz ± 5%
|
| Power
consumption
|
≤ 60W
|
| Size (W×H×D)
|
320 * 280 * 100 mm
|
| Weight
|
About 5kg
|
Comprehensive
| Basic Accuracy
|
0.001
|
| Touch mode
|
Internal, Manual, External
|
| Speed
|
Fast 、Medium、Slow
|
| Calibration
|
yes
|
| Test port
|
8 groups
|
| Display
|
128*64 LCD
|
| Test signal
|
| Test color
|
white、red、blue 、green
|
| Output Volt.
|
0.000 —— 8.000(V)
|
| Output Current
|
0.000 —— 50.000(mA)
|
| Color Current
|
0.000 ——50.000(mA)
|
| Color sensor
|
Square
wave output
（0 —— 150kHz）
|
| Test volt.
|
3.3 —— 5V
|
| Test channel
|
| Channel
|
2
|
| test group number
|
8
|
| Pin options
|
P+：P1-P8
|
| P-：P1-P8
|
| Memory
|
5 files
|
| Interface
|
| Phenix 20Pin test port、16Pin
sensor port、Remote、DB9 pin
|
Purchase information

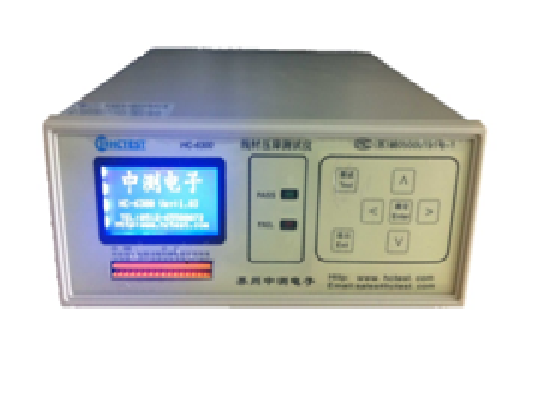

HC-6500 LED Color Tester
HC-6500-A 16Pin
Cable and PCB board
HC-6500-B Test Box
HC-6500-C Sensor Color
|
