| Product Features
■ 7” LCD Display
■ System provides 20 Hz－2M Hz (10mHz Step)
■ Output impedance 30 Ω, 100 Ω ,10 /100, 10 /CC
■ Basic Accuracy 0.05%
■ Test Volt. Normal：5mV~2V
■ Auto level Control (ALC)
■ Frequency response graph mode
■ Software upgrade by USB HOST
Test Item
| Z|, |Y|, C, L, X, B, R, G, D, Q, θ,DCR
| RANGE
|
| |Z|, R, X
|
0.01mΩ — 99.9999 MΩ
|
| DCR
|
0.01 mΩ — 99.9999 MΩ
|
| |Y|, G, B
|
0.00001µS — 99.9999S
|
| C
|
0.00001pF — 9.9999F
|
| L
|
0.00001µH — 9999.99H
|
| D
|
0.00001 — 9.9999
|
| Q
|
0.00001 — 9999.9
|
| θ (DEG)
|
-179.999º — 179.999º
|
Specifications
| Temp. Humidity
|
0°C－40°C, £90%RH
|
| Power
|
Volt.
|
110V ±10%
Or 220
±10%
|
| Freq.
|
47.5Hz－63Hz
|
| Power consumption
|
≤ 80VA
|
| Size (W×H×D)
|
398mm×129mm×370mm
|
| Weight
|
About 9Kg
|
| Comprehensive
|
| Test Freq.
|
20Hz~2MHz, (10mHz
Step )
|
| Basic
Accuracy
|
0.05%
|
| Equivalent Circuit
|
Series, Parallel
|
| Comparator
|
Upper
and Lower test limits in units and percentage
|
| Test mode
|
Auto, Continued, Manual
|
| Touch mode
|
Internal, Manual, External
|
| Test speed（≥1kHz）
|
Fast: 75t/sec, Medium: 12t/sec, Slow: 3t/sec
|
| average number
|
1—255
|
| Delay Time
|
0—60s, 1ms step
|
| Calibration
|
open/ short / load
|
| Test
configuration
|
Five end
|
| Display mode
|
Δ，Δ%，V/I（Voltage /
current monitoring）
|
| LCD
|
7’ LCD
|
| Test signal
|
| Freq.
|
20 Hz－2MHz
|
| Output
impedance
|
30 Ω, 100 Ω,50Ω, 10 /CC
|
| Test Volt.
|
5mV~2V Accuracy：10%
|
| Memory
|
100(Internal) ， 500 (External)
|
| Interface
|
RS232C、HANDLER、USB HOST，
(OPTION GPIB )
|
Purchase
information

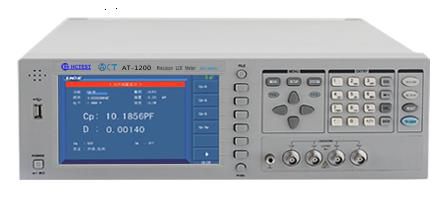

AT-1200 Precision LCR
Meter Accessories
AT26001A Four wire Kelvin
cable
AT26004-1 Four wire Kelvin cable
AT26010A Gold plated circuit / Short board
AT26009B SMD Test clamp
AT26008A SMD Test Box
AT10201 Software
|
