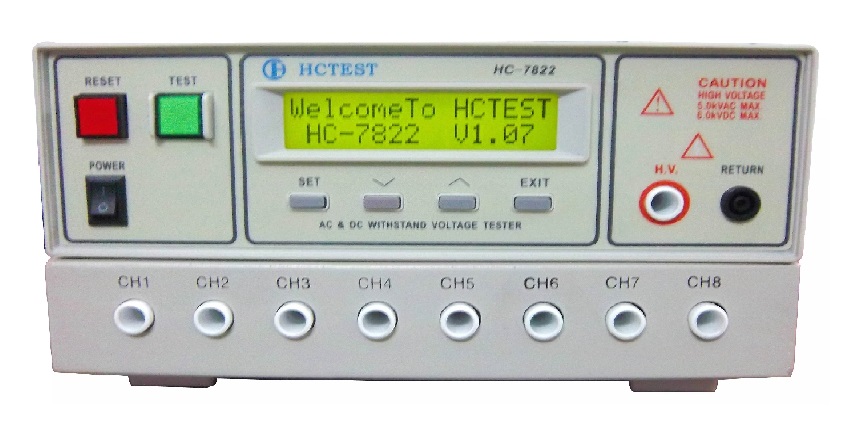

HC-7822
|
HC-7820
|
HC-7812
|
HC-7810
|
| Input Voltage AC
|
AC、（47~63）Hz, 220V、±10%
|
| Output Rating
|
AC:5KV. 12mA
|
| Output Frequency
|
50Hz / 60Hz ± 0.1%, User selectable
|
| Output Waveform
|
Sine Wave ,THD: Less than 2% at 300Vrms or higher
voltage (Resistive Load), Crest Factor = 1.3 -- 1.5
|
| AC Current, mA (Max. Min.)
|
Range：（0.01-12.00）mA
|
| Resolution：0.01mA/Step Accuracy：±2%
Setting + 2Counts)*
|
| DC Output Rating
|
DC:6kV、5mA
|
| Output Ripple
|
＜5% 6kV/5mA
At Resistive load
|
| DC Current, mA (Max. Min.)
|
Range：（0.01-5.00）mA
|
|
| Accuracy ：0.01mA/Step
|
| Accuracy：±（2% setting+2Counts)*
|
| AC/DC Setting
|
AC 5KV DC6KV
|
| Accuracy ：±（2%
setting+5V）
|
| Voltage ratio
|
±（1% Setting+5V） No load to full load
|
| Ramp Up Time, second
|
Range：（0.1-999.9）s、0.1s/Step
|
| Test time
|
Range ：（0.1-999.9）s、0.1s/Step
0= Continuous
|
| Arc Detection
|
The range is from 1 -- 9 ( 9 is the most sensitive)
0=off
|
| Voltmeter / Ammeter
|
Range ：（0.00-5.00/6.00）Kv.(0.00-12.00/5.00)mA
|
| Resolution ：0.01kV/Step\0.001mA/Step
|
| Accuracy ：±（2% of reading +2Count)
|
| Auto Discharge
|
Time at 200ms max. Capacitance
|
|
| At 0.2uF Input≤1kV
|
| At 0.1uF Input ≤2kV
|
| At 0.05uF Input ≤4kV
|
| At 0.04uF Input≤5kV
|
| At 0.015uF Input≤6kV
|
| DC Voltage
|
1KV
|
-----
|
1KV
|
----
|
| Insulation Range
|
1M-9999M
|
-----
|
1M-9999M
|
----
|
| Comprehensive
|
| Power
|
110V/220V Input±10%
|
| Temp.
|
-10℃~-35℃
|
| Humidity
|
RH≤75%
|
| Power consumption
|
Max 100W
|
| Weight
|
About 11KG
|
| Size
|
190mm*290mm*390mm
|
| Purchase
Information
|
| HC-7810
|
AC Withstand Voltage Tester
|
| HC-7820
|
AC/DC Withstand Voltage Tester
|
| HC-7812
|
AC Withstand Voltage / Insulation Resistance Tester
|
| HC-7822
|
AC/DC Withstand Voltage / Insulation Resistance
Tester
|
| Accessories
|
| FX-H001
|
Hipot Test Lead
|
| FX-H002
|
Hipot Test Probe, 1.5m Rod type with Lead.
|
| FX-H003
|
Hipot Return Lead
|
