| Product Features
■ 4.3 ’ LCD Display
■ System provides 50 Hz－100 kHz(10points)
■ Output impedance 30 Ω, 100 Ω
■ Basic
Accuracy 0.1%
■ Test Volt. Normal：0.1V、0.3V、1V
■ Software upgrade by USB HOST
Test Item
| Z|, |Y|, C, L, X, B, R, G, D, Q, θ
| RANGE
|
| |Z|, R, X
|
0.01m Ω — 99.999 MΩ
|
| |Y|, G, B
|
0.0001µS — 99.999 S
|
| C
|
0.0001 pF — 9.9999 F
|
| L
|
0.0001 µH — 999.99 H
|
| D
|
0.0001 — 9.9999
|
| Q
|
0.0001 — 99999
|
| Θ
|
-179.99º — 179.99 º
|
Specifications
| Temp. Humidity
|
0°C－40°C, £90%RH
|
| Power
|
Volt.
|
110V ±10%
Or 220 ±10%
|
| Freq.
|
47.5Hz－63Hz
|
| Power consumption
|
≤ 30VA
|
| Size (W×H×D)
|
240mm*90mm*310mm
|
| Weight
|
About 2.5kg |
| Comprehensive
|
| Test Freq.
|
50Hz,60Hz,100Hz,120Hz,1kHz,10kHz,20kHz,
40kHz, 50kHz,100kHz, (10 points )
|
| Basic
Accuracy
|
0.05%
|
| Equivalent Circuit
|
Series, Parallel
|
| Comparator
|
Upper
and Lower test limits in units and percentage
|
| Test mode
|
Auto, Continued, Manual
|
| Touch mode
|
Internal, Manual, External
|
| Test speed（≥1kHz）
|
Fast: 40t/sec, Medium: 11t/sec, Slow: 3t/sec
|
| average number
|
1—255
|
| Delay Time
|
0—60s, 1ms step
|
| Calibration
|
open/ short / load
|
| Test
configuration
|
Five end
|
| Display mode
|
Δ，Δ%，V/I（Voltage / current monitoring）
|
| LCD
|
4.3’LCD
|
| Test signal
|
| Freq.
|
50 Hz－100 kHz
|
| Output
impedance
|
30 Ω, 100 Ω ( Select)
|
| Test Volt.
|
Normal：0.1V、0.3V、1V Accuracy：10%
|
| Memory
|
100(Internal) ， 500 (External)
|
| Interface
|
RS232C、HANDLER、USB HOST，
(OPTION GPIB )
|
Purchase
information

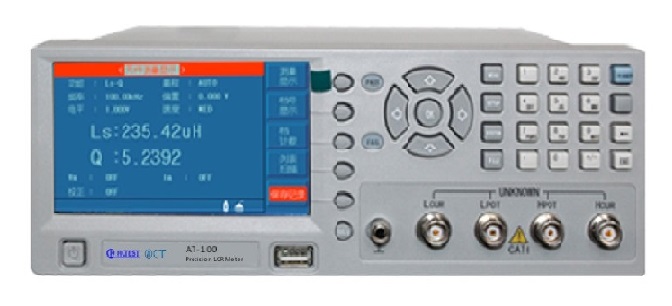

AT-100 Precision LCR
Meter
Accessories
AT26001A Four wire Kelvin
cable
AT26004-1 Four wire Kelvin cable
AT26010A Gold plated circuit / Short board
AT26009B SMD test clamp
AT26008A SMD test box
AT10201 Software
|
