Products > Connector Tester

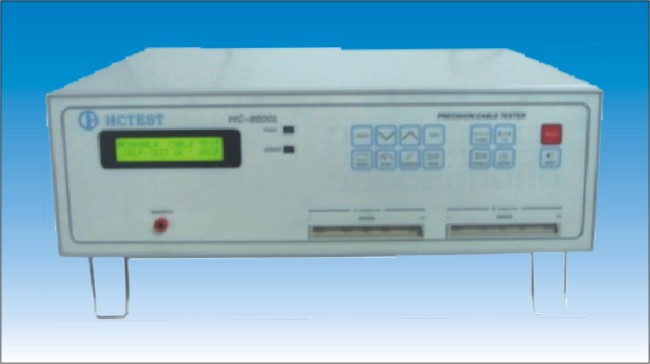

Connector Tester


Product Features

  • Provide DC5V testing open/ short

  • 2*20  LCD Display



Test Functions

Test item

Symbol

                Range

Open / Short

os

5KΩ ~ 50KΩ

Dc Insulation

Is.

1MΩ ~ 10MΩ

Intermittent Open/Short

Int.os

5KΩ-50KΩ

Test mode

NORMAL / S.SIDE / S.STEP

Communication interface

Handler / Rs232 / Print

Scanning Mode

Auto/Short Switchable

Decision mode

Pass /fail (led)  .  Speaker

Starting mode

Auto

Memory

64KB



Comprehensive information



Power Input 220V ±10%  60Hz

Power consumption: 200W

Temp. :  -10℃ ~ 35℃   Humidity : RH≤ 75%

Size : 425*132*345 (128p. 256p or 512p)

Weight : 5KG(128/256p)  , 6KG(512p)



Purchase information

HC-8600L              Connector  Tester

/128/256/512            Test points selection



Accessories

FX-2064  　output 64pin   (2*64*2.54)

FX-1090  　Pneumatic tapper

　
